Závrtné šrouby ČSN 011173 - DIN 6379

PEVNOST: Třída 8.8
POVRCHOVÁ ÚPRAVA: Černění

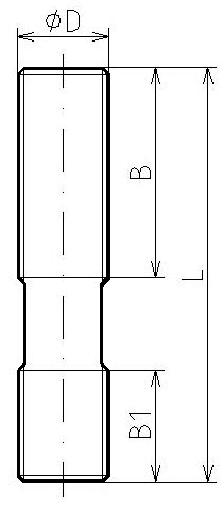

obj. číslo øD x L velikost šroubu B[mm] B1[mm] Cena Kč/kus
411730806300 M8 x 63 40 11 21
411730808000 M8 x 80 50 25
411730810000 M8 x 100 63 27
411730816000 M8 x 160 100 33
411731005000 M10 x 50 25 13 25
411731008000 M10 x 80 50 30
411731010000 M10 x 100 75 36
411731012500 M10 x 125 75 39
411731016000 M10 x 160 100 50
411731020000 M10 x 200 125 59
411731206300 M12 x 63 32 15 32
411731208000 M12 x 80 50 35
411731210000 M12 x 100 63 39
411731212500 M12 x 125 75 48
411731216000 M12 x 160 100 55
411731220000 M12 x 200 125 60
411731406300 M14 x 63 32 17 37
411731410000 M14 x 100 63 46
411731416000 M14 x 160 100 58
411731420000 M14 x 200 125 74
411731425000 M14 x 250 160 88
411731606300 M16 x 63 32 19 51
411731608000 M16 x 80 50 53
411731610000 M16 x 100 63 55
411731612500 M16 x 125 75 62
411731616000 M16 x 160 100 75
411731620000 M16 x 200 125 92
411731625000 M16 x 250 160 105
411731631500 M16 x 315 180 136
411731650000 M16 x 500 315 240
411731808000 M18 x 80 50 23 63
411731812500 M18 x 125 75 79
411731816000 M18 x 160 100 98
411731820000 M18 x 200 125 132
411731825000 M18 x 250 150 175
411731831500 M18 x 315 180 210
411732008000 M20 x 80 32 27 65
411732012500 M20 x 125 70 79
411732016000 M20 x 160 100 98
411732020000 M20 x 200 125 120
411732025000 M20 x 250 160 150
411732031500 M20 x 315 200 207
411732040000 M20 x 400 250 299
411732050000 M20 x 500 315 330
411732410000 M24 x 100 45 36 86
411732412500 M24 x 125 70 98
411732416000 M24 x 160 100 120
411732420000 M24 x 200 125 152
411732425000 M24 x 250 160 176
411732431500 M24 x 315 200 238
411732440000 M24 x 400 250 310
411732450000 M24 x 500 315 375
411732463000 M24 x 630 315 480
411433012500 M30 x 125 56 43 182
411433020000 M30 x 200 125 275
411433031500 M30 x 315 200 450
411433050000 M30 x 500 315 680
411433070000 M30 x 700 400 890
4114330100000 M30 x 1000 400 976
